IMS modular mast
Aiming high thanks to flexible modular technology
Stable and configurable
A modular tower from IMS Kommunikationstechnik GmbH in Leipzig can be used as a temporary or permanent variant with both versions developed to provide the following convincing points:
- Individual configuration options,
- Short assembly times thanks to smart module technology and
- A high static load-bearing capacity.
Our relevant department manager will be happy to advise you personally.
Contact person
Daniel Wille
Head of department
Phone: +49341 – 2269 10 66
Brief description: 27 m modular tower
The 27 m modular tower from IMS Kommunikationstechnik GmbH in Leipzig features the following:
Height
- Max. 27 m with extension pole
- Individual segments each 3m high
Weight
- Base frame: 5,750 kg
- Standard section: 320 kg (7x for 27 m)
- Section 2 (bracing): 1,100 kg
- Section 8 (with extension tube): 460 kg
- Concrete weight: 20,000 kg
- Total 27 m mast + concrete weight: 29,550 kg
Ground surface
- At least 30 cm compacted gravel cushion
Statics
- Standard statics for 3x quad-band antennas, 12xRRUs, 1×0.6 m microwave antennas
- Special statics (omni, microwave POC, etc.) can be calculated.
- Permit available as a mobile structure
Ladder, platforms, cable path
- All common manufacturers can be used
- Work or rest platform can be retrofitted
- Cable path can be mounted either directly on the ladder or as an extension on the corner post

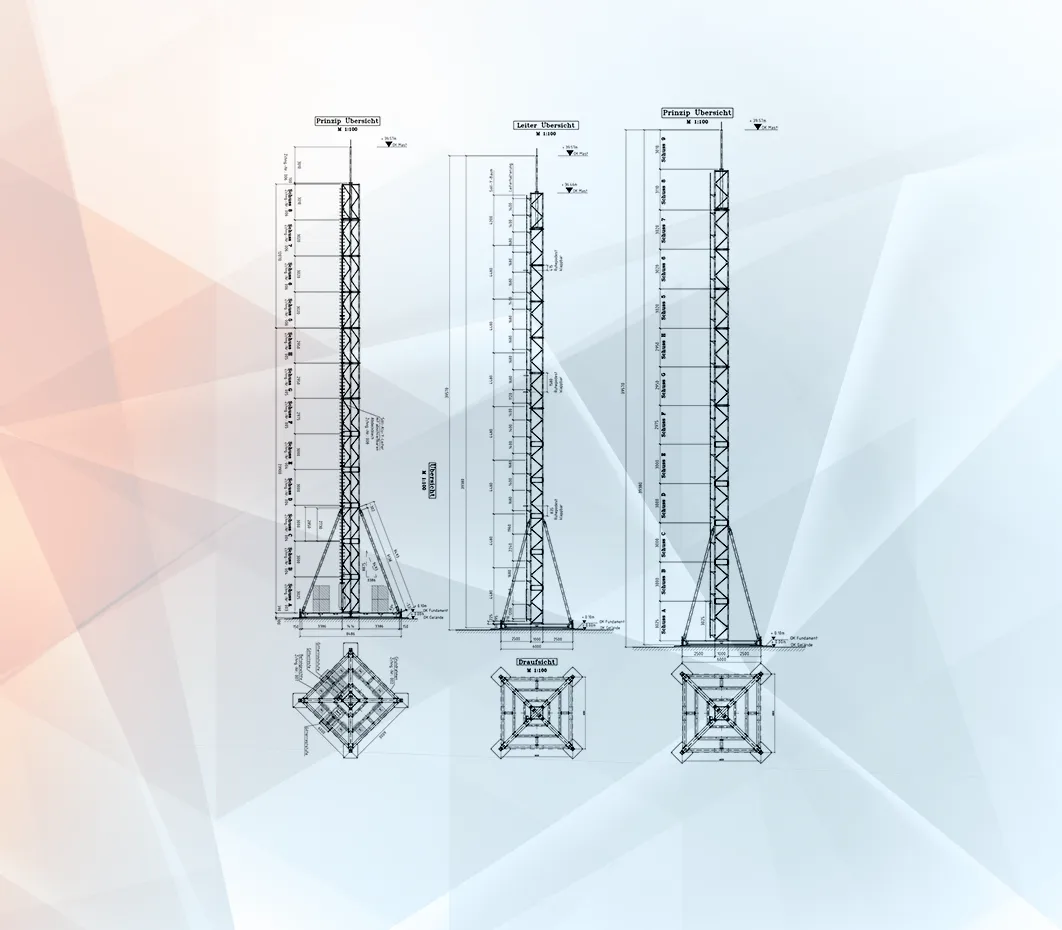

Brief description: 40 m modular tower
The 40 m modular tower from IMS Kommunikationstechnik GmbH in Leipzig features the following:
Height
- Maximum 40 m with extension pole
- Individual segment height: Weft H and G 2950 mm, weft F 2975 mm
Weight
- Base frame: 6190 kg
- Standard shot: 1167.75 kg
- Shot 2 (brace): 629.94 kg
- Shot 8 (with extension tube): 408.32 kg
- Concrete weights: 39,744.00 kg
- Total 40 m mast + weights: 57,786.36 kg
Ground surface
- At least 40 cm ballast base layer with compaction test using Terratest drop weight device.
Statics
- Standard statics 3x quad-band antennas, 12x RRUs, 1×0.6m RiFu
- Special statics (Omni, Rifusammler, etc.) must be statically calculated
- Approval as a flying structure available
Ladder, platforms, cable path
- All common manufacturers possible
- Work or rest platform can be retrofitted
- Cable route can be fitted either directly to the access route or as an extension to the corner leg
